seismometer.configuration.model.FilterConfig

pydantic model seismometer.configuration.model.FilterConfig

A configurable rule for filtering data based on values in a specific column.

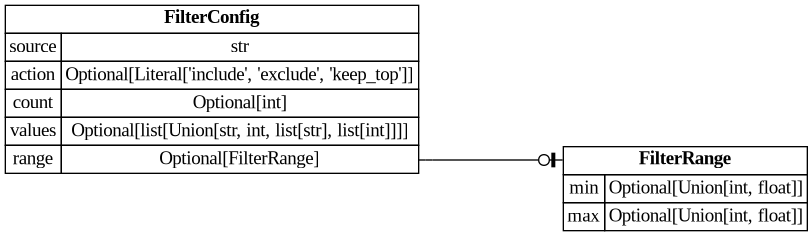

Show Entity Relationship Diagram
digraph "Entity Relationship Diagram created by erdantic" {
   graph [fontcolor=gray66,
      fontname="Times New Roman,Times,Liberation Serif,serif",
      fontsize=9,
      nodesep=0.5,
      rankdir=LR,
      ranksep=1.5
   ];
   node [fontname="Times New Roman,Times,Liberation Serif,serif",
      fontsize=14,
      label="\N",
      shape=plain
   ];
   edge [dir=both];
   "seismometer.configuration.model.FilterConfig"   [label=<<table border="0" cellborder="1" cellspacing="0"><tr><td port="_root" colspan="2"><b>FilterConfig</b></td></tr><tr><td>source</td><td port="source">str</td></tr><tr><td>action</td><td port="action">Optional[Literal['include', 'exclude', 'keep_top']]</td></tr><tr><td>count</td><td port="count">Optional[int]</td></tr><tr><td>values</td><td port="values">Optional[list[Union[str, int, list[str], list[int]]]]</td></tr><tr><td>range</td><td port="range">Optional[FilterRange]</td></tr></table>>,
      tooltip="seismometer.configuration.model.FilterConfig&#xA;&#xA;A configurable rule for filtering data based on values in a specific column.&#\
xA;"];
   "seismometer.configuration.model.FilterRange"   [label=<<table border="0" cellborder="1" cellspacing="0"><tr><td port="_root" colspan="2"><b>FilterRange</b></td></tr><tr><td>min</td><td port="min">Optional[Union[int, float]]</td></tr><tr><td>max</td><td port="max">Optional[Union[int, float]]</td></tr></table>>,
      tooltip="seismometer.configuration.model.FilterRange&#xA;&#xA;A numeric range filter specifying minimum and/or maximum values.&#xA;"];
   "seismometer.configuration.model.FilterConfig":range:e -> "seismometer.configuration.model.FilterRange":_root:w   [arrowhead=noneteeodot,
      arrowtail=nonenone];
}

Show JSON schema
{
   "title": "FilterConfig",
   "description": "A configurable rule for filtering data based on values in a specific column.",
   "type": "object",
   "properties": {
      "source": {
         "title": "Source",
         "type": "string"
      },
      "action": {
         "anyOf": [
            {
               "enum": [
                  "include",
                  "exclude",
                  "keep_top"
               ],
               "type": "string"
            },
            {
               "type": "null"
            }
         ],
         "default": null,
         "title": "Action"
      },
      "count": {
         "anyOf": [
            {
               "type": "integer"
            },
            {
               "type": "null"
            }
         ],
         "default": null,
         "title": "Count"
      },
      "values": {
         "anyOf": [
            {
               "items": {
                  "anyOf": [
                     {
                        "type": "string"
                     },
                     {
                        "type": "integer"
                     },
                     {
                        "items": {
                           "type": "string"
                        },
                        "type": "array"
                     },
                     {
                        "items": {
                           "type": "integer"
                        },
                        "type": "array"
                     }
                  ]
               },
               "type": "array"
            },
            {
               "type": "null"
            }
         ],
         "default": null,
         "title": "Values"
      },
      "range": {
         "anyOf": [
            {
               "$ref": "#/$defs/FilterRange"
            },
            {
               "type": "null"
            }
         ],
         "default": null
      }
   },
   "$defs": {
      "FilterRange": {
         "description": "A numeric range filter specifying minimum and/or maximum values.",
         "properties": {
            "min": {
               "anyOf": [
                  {
                     "type": "integer"
                  },
                  {
                     "type": "number"
                  },
                  {
                     "type": "null"
                  }
               ],
               "default": null,
               "title": "Min"
            },
            "max": {
               "anyOf": [
                  {
                     "type": "integer"
                  },
                  {
                     "type": "number"
                  },
                  {
                     "type": "null"
                  }
               ],
               "default": null,
               "title": "Max"
            }
         },
         "title": "FilterRange",
         "type": "object"
      }
   },
   "required": [
      "source"
   ]
}

Fields:
Validators:
field action: Literal['include', 'exclude', 'keep_top'] | None = None

The type of filtering to apply.

  • “include”: keep only rows matching the specified values or range

  • “exclude”: remove rows matching the specified values or range

  • “keep_top”: retain only the top count (by default FilterRule.MAXIMUM_NUM_COHORTS) most frequent values

Validated by:
field count: int | None = None

Number of top values to retain if action is ‘keep_top’. Defaults to FilterRule.MAXIMUM_NUM_COHORTS.

Validated by:
field range: FilterRange | None = None

A numeric range with min and/or max bounds, by default None. Typically used with numeric columns.

Validated by:
field source: str [Required]

The name of the column to filter.

Validated by:
field values: List[str | int | List[str] | List[int]] | None = None

A list of allowed or disallowed values, by default None.

Validated by:
validator validate_filter_config  »  all fields

Validates the consistency of filter fields after model is initialized. Ensures appropriate combinations of action, values, and range.

Return type:

FilterConfig
